Large-Scale CNC Machining Center

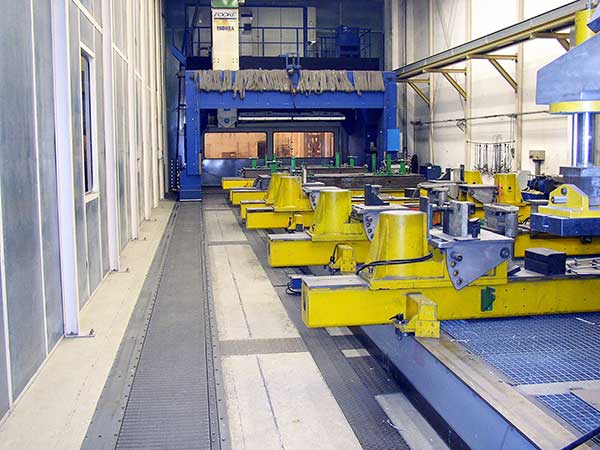

Fooke Endure Large-Scale CNC Machining Center

The large-scale 5-Axis CNC machine offers a work envelop that truly sets it apart from most machining centers. As structural designs increasingly leverage larger plates or extrusions, they require unique manufacturing capability.  In addition to machining, we can bore and drill parts to provide threaded holes. We can even offer complete finishing solutions on very large structures, ensuring that components are ready to install.

A brochure/datasheet with machine specifications can be downloaded.

Machine Specifications:

  • X Gantry Travel: 1614.17 in. (41000 mm)
  • Y Saddle Travel:  161.42 in. (4100 mm)
    • Distance Between Columns: 216.54 in. (5500 mm)
  • Z Spindle Travel: 62.99 in. (1600 mm)
    • Distance from Spindle to Floor: 76.77 in. (1950 mm)
  • W Cross Rail Travel: Fixed Cross Rail
  • Rapid Travel Speed: 1574.80 in./Min (40.00 meters/Min)

Machine Spindle:

  • Rotation: C-Axis 360 Degrees
  • Inclinable:  A-Axis +/- 100 Degrees
  • Spindle Speed: 100 – 16000 Rpm
  • Spindle Power: 56.00 Hp (42.00 kw)
  • Drawbar: Power Pull Stud Tool Changer / Taper: HSK 100
  • Tool Changer: 16 Stations / Spindle Coolant

Category: Mills, Vertical, Traveling Gantry Type, CNC
Manufacturer: Fooke / Model: Endura / Year: 1997
Control Manufacturer and Model: New Fanuc 16imb – Retrofitted 2020
