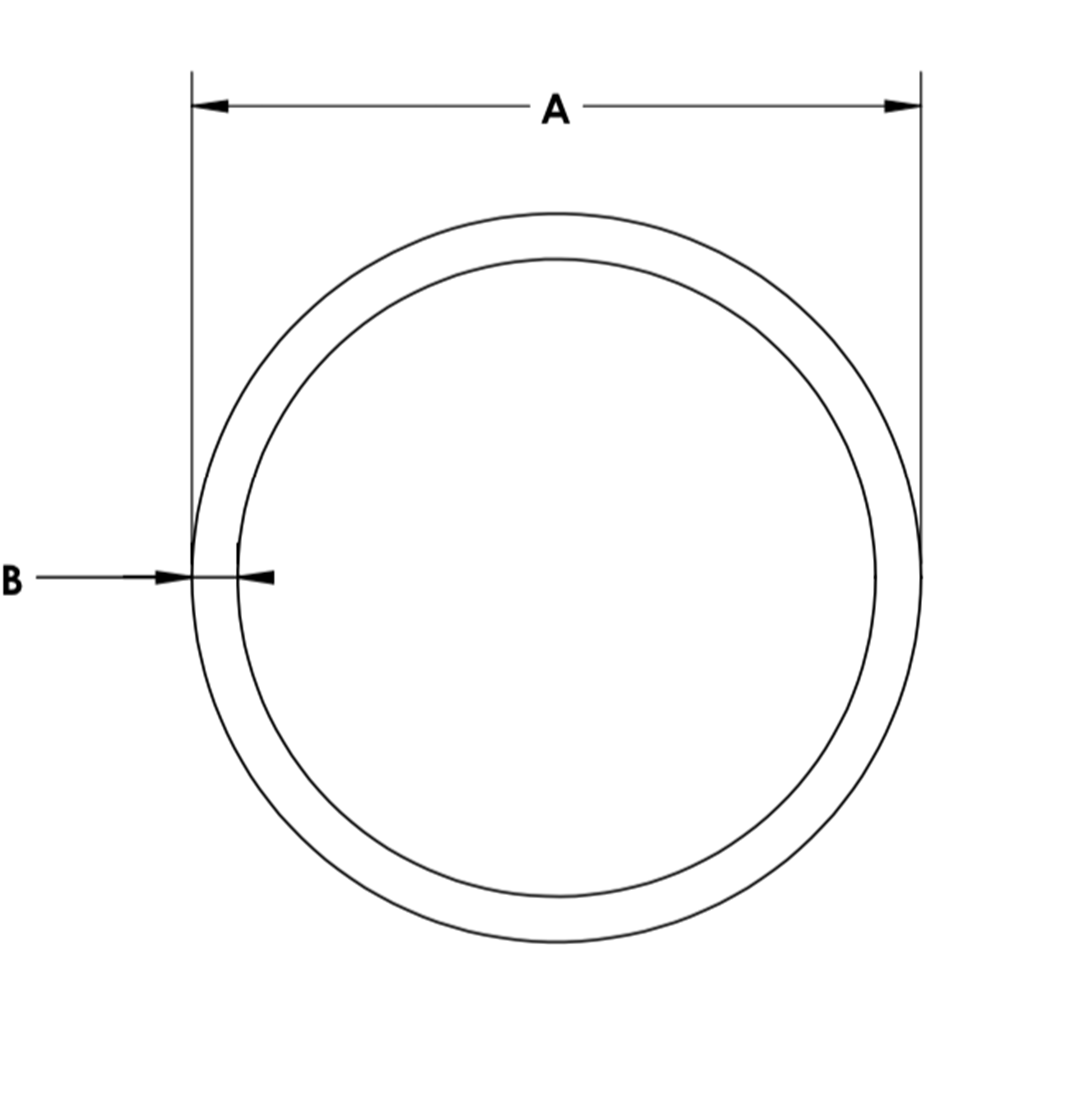

Round Tube
| Die Number | A | B | LBS/FT |
|---|---|---|---|
| WH10718 | 1.000 | 0.080 | 0.271 |
| WH10101 | 1.000 | 0.125 | 0.402 |
| WH10207 | 1.000 | 0.250 | 0.689 |
| WH10078 | 1.500 | 0.093 | 0.481 |
| WH10055 | 1.500 | 0.125 | 0.632 |
| WH10081 | 2.000 | 0.125 | 0.862 |
| WH10074 | 2.500 | 0.125 | 1.092 |
| WH10076 | 3.000 | 0.125 | 1.322 |
| WH10377 | 3.000 | 0.250 | 2.528 |
| WH10075 | 3.500 | 0.156 | 1.918 |
| WH10077 | 3.500 | 0.188 | 2.290 |
| WH10082 | 4.000 | 0.188 | 2.629 |
| WH10371^ | 4.000 | 0.250 | 3.447 |
^ Premium Applies
